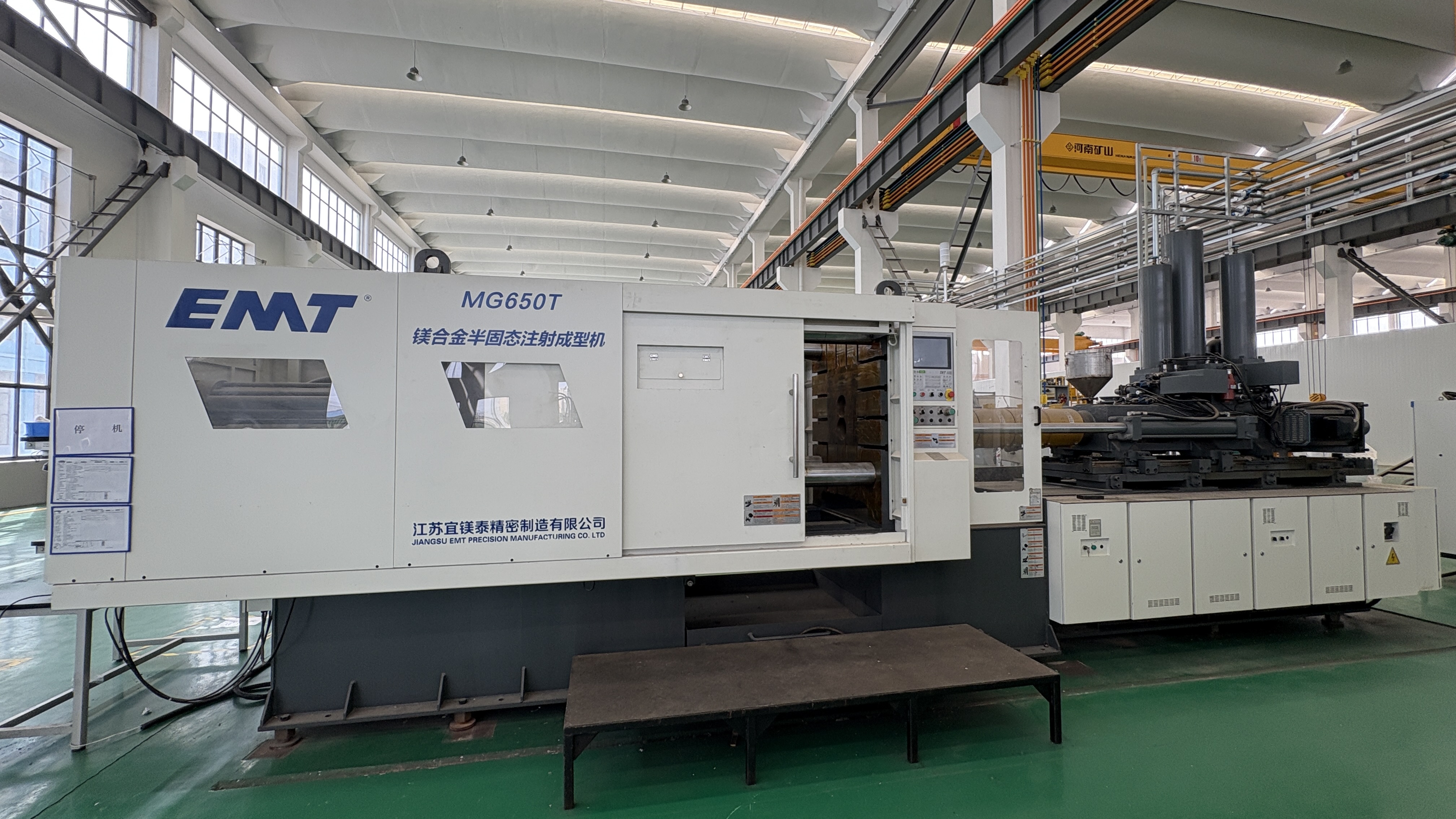

6500KN Thixomolding Machine MG-650 Magnesium Alloy Semi Solid Forming

Brand Name : EMT

Certification : TS16949、IOS9001

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T,Western Union

Supply Ability : 50000PCS /Month

Delivery Time : 7-15 work days

Packaging Details : According to customer needs

Model Number : MG-650

Locking force : 6500

Material : Magnesium alloy

Forming process : Semi-solid thixoforming

Dimensions : Customer Required

Energy saving : Yes

Injection speed : quick

Contact Now

6500KN Thixomolding Machine MG-650 Magnesium Alloy

No.	DESCRIPTION	UNIT	MG650
I. Mold locking
1	Mold Locking Force	kN	6500
2	Mold Lock Stroke	mm	720
3	Mold Thickness (Minimum To Maximum)	mm	350-900
4	Clamping Plate Dimension (Horizontal × Vertical)	mm	1300×1300
5	Column Spacing (Horizontal × Vertical)	mm	810×810
6	Way Of Mold Installation	-	T-groove way
II. Injection
1	Screw Diameter	mm	84
2	Injection Pressure	MPa	120
3	Theoretical Injection Volume	cm³	1662
4	Theoretical Injection Mass	g	2426
5	Theoretical Injection Rate	cm³∕s	25491
6	Maximum Injection Speed Of Screw	m∕s	5
7	Rotation Speed Of Screw	r∕min	10-300
8	Injection Stroke	mm	300
9	Injection Nozzle Dimension	mm	φ18×R35
10	Injection Nozzle Inlet	mm	75
11	Injection Nozzle Contact Force	kN	330
12	Injection Device Position	mm	0,-175

Our team is one of the first teams in China to be exposed to thixomolding technology for magnesium alloys. Through more than ten years of arduous research and development, they have mastered the world's leading thixomolding core technology for magnesium alloys, breaking foreign monopolies.

6500KN Thixomolding Machine MG-650 Magnesium Alloy Semi Solid Forming

Product Service:

①. Before-sale service

1. Investment budget.

2. Plant planning.

3. Equipment overhaul.

②. In-sale service

1. Peripheral information.

2. Machine foundation.

3. Production assistance.

4. Machine installation.

5. Personnel support.

6. Training support.

③. After-sale service

1. Available within 48 hours.

2. Trial service.

3. Machine maintenance.

4. Regular visit.

5. Technical support.

6. Maintenance support.

6500KN Thixomolding Machine MG-650 Magnesium Alloy Semi Solid Forming

Advantage:

Product Tags:

6500KN Thixomolding Machine

Magnesium Alloy Thixomolding Machine

Semi Solid Forming Thixomolding Machine

China 6500KN Thixomolding Machine MG-650 Magnesium Alloy Semi Solid Forming wholesale

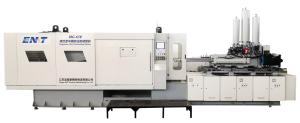

6500KN Thixomolding Machine MG-650 Magnesium Alloy Semi Solid Forming Images
